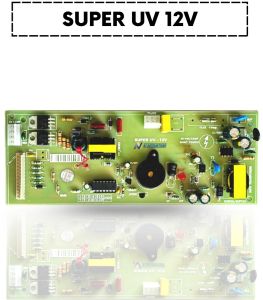

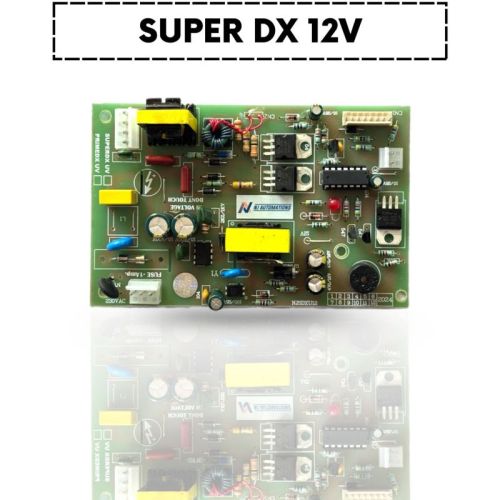

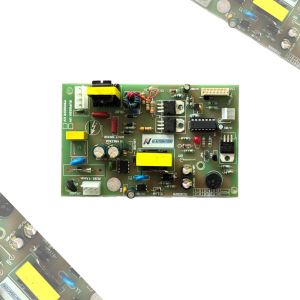

Superdx UV 12V,PCB for UV Water Purifier

Usage/Application: UV Water Purifier

Features:

•

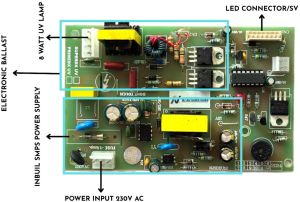

• On-board 12V SMPS (Switched-Mode Power Supply) power supply
• On-board high-quality electronic UV ballast circuit
• UV fail alarm functionality
• 12V DC / 6W output for Solenoid Valve (SV)
• 8 Watt UV Lamp
• 2 LED process indication lights

Power Input: 230V AC
PCB Material: CEM1
Size/Dimensions: Specific dimensions are not provided in the description.

Additional Details:

On-board SMPS Power Supply: Provides stable and efficient 12V DC power supply for the solenoid valve and other components of the UV water purifier.

Electronic UV Ballast Circuit: Ensures optimal performance and longevity of the UV lamp, maintaining effective water purification.

UV Fail Alarm: Alerts users in case of UV lamp failure, ensuring timely maintenance for continuous purification.

Output Specifications:

•  Solenoid Valve (SV): 12V DC / 6W output to control the water flow in the purifier system.
• UV Lamp: 8 Watt UV lamp for effective disinfection of water.
• LED Process Indication: Provides visual feedback with 2 LEDs to indicate different stages or statuses of the purification process.
• PCB Material: CEM1 is chosen for its cost-effectiveness and suitability for general-purpose electronic applications.
• Application: Specifically designed for UV water purifiers, the SUPER-DX UV 12V provides essential features for reliable and efficient water purification, focusing on performance and durability.

COMPATIBILE -

• AQUAFLOW
• DX
• VERVE
